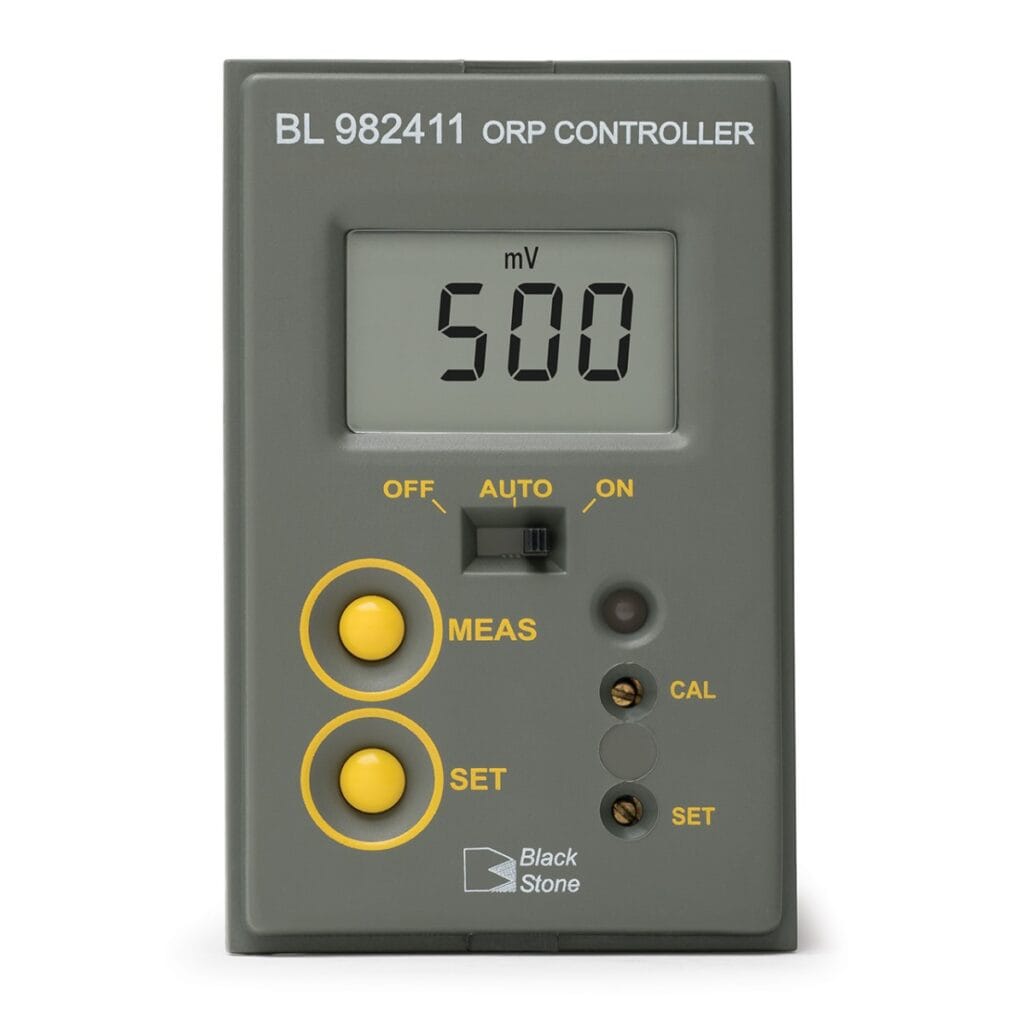

ORP Mini Controller – BL982411

220,00 + IVA

Guadagna fino a: 220 punti.
Richiedi informazioni

The BL982411 is a compact, easy to handle, efficient, ORP process controller designed for applications where space or cost is important. The device may be used with any ORP electrode with a standard BNC connector. It’s adjustable dosing relay may be configured to dose above or below a user programmable mV setpoint. Users may choose from automatic or manual dosing modes allowing for easy maintenance and troubleshooting.

Large Clear LCD

A large LCD clearly displays the parameter you are monitoring.

Fire Retardant Casing

Special materials provide additional protection in the event of an emergency.

BNC Connection

The controller’s high impedance pH input may be used with any pH electrode with a standard BNC connector.

Tempi di spedizione
Non a stock, spedizione prevista entro 10 giorni lavorativi #N/A
Garanzia diretta dal produttore
Assistenza clienti sempre a disposizione
Maggiori informazioni
Specifiche tecniche
Info Ordine

Adjustable Dosing Relay

The BL982411 features a dosing relay which may be configured to dose above or below a user programmable mV setpoint.

Selectable Overdose Protection

The mini controller may be programmed to deactivate a valve, pump, or connected device if its activation continues over a selected time; adjustable from 5 to 30 minutes.

Selectable Control Override

With the flick of a switch, normal “Auto” operation may be overridden turning your connected device “Off” from operation or always “On.”


Fuse Protected Dosing Contacts

The mini controller is protected for up to a 2A load from a connected pump or device.

Easy Peripheral Connection

Quick-connect terminal blocks provide for easy connection to power, communication, dosing control, or sensors.

Matching Pin Connection

An included matching pin option helps protect the sensor from ground loop effects that may lead to erratic readings or system damage.


Front View

Installation cut-out dimensions are provided as well as outside panel dimensions.


Side View

Adjustable location brackets allow the controller to slide easily and securely into place..

Scala ORP: 0.0 to 199.9 ppm (mg/L)
Risoluzione ORP: 0.1 ppm (mg/L)
Accuratezza ORP: ±2% f.s.
Calibrazione mV (ORP): manual, with CAL trimmer
Relè di Dosaggio mV (ORP): maximum 2A (fuse protected), 250 Vac, 30 VDC
Set Point mV (ORP): adjustable from 0 to 199.9 mg/L (ppm)
Terminali di Dosaggio: reducing or oxidizing
