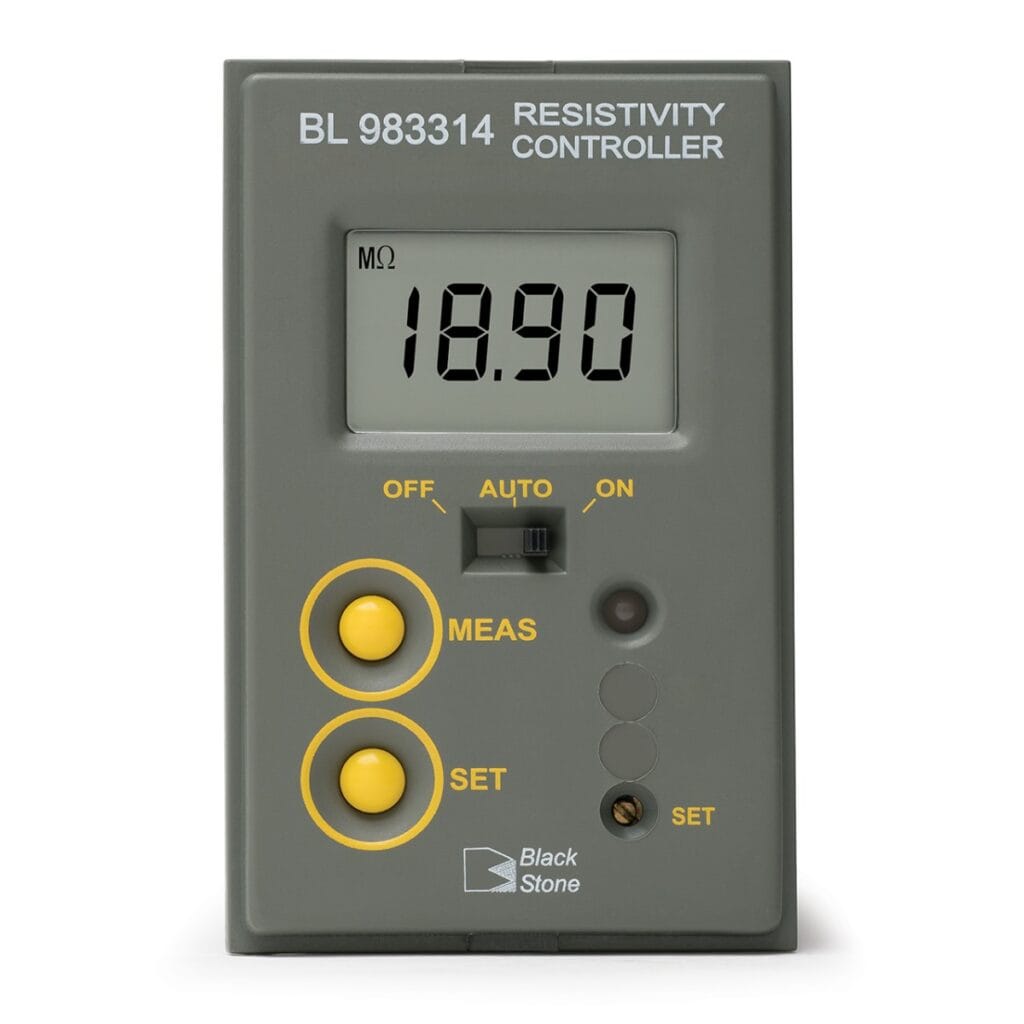

Resistivity Mini Controller - BL983314

395,00 + 22% IVA

Guadagna fino a 395 punti
Richiedi informazioni

The BL983314 is a simple to operate resistivity controller designed for ultra pure water, reverse osmosis, and water conditioning applications. The BL983314 resistivity controller is also ideal for continuous monitoring to process solutions. Setpoint and calibration are manually adjusted with a trimmer and the alarm relay allows for simple control

Tempi di spedizione
A stock, spedizione prevista in 1-2 giorni lavorativi #N/A
Garanzia diretta dal produttore
Assistenza clienti sempre a disposizione
Maggiori informazioni
Specifiche tecniche
Recensioni
Downloads
Info Ordine

About the BL983314 Resistivity Mini Controllers

  • Fire retardant casing
  • Selectable overdose protection system
  • Splash-resistant cover



Readings are automatically temperature compensated with three different coefficients (β=2.4, 3.5 or 4.5 %/°C). The alarm contact can be used for connection to an alarm, pump, solenoid or dosing system.

The relay contact is open when readings are higher than the setpoint, while for measurements lower than setpoint, the relay contact is closed. The hysteresis is typically 0.20 MΩ •cm from the setpoint.

Measurements are displayed on the LCD and the multi-coloured LED continuously indicates if the controller is in measurement, dosing, or alarm mode. Users can choose automatic or manual dosing mode with a switch on the front panel. Manual control is particularly useful during maintenance operations, because it permits operators to enable or disable the dosing relay according to need.

The overtime control system advises users when the relay is active for too long, helping to prevent over-dosage.

Scala Resistività: 0.00 to 19.90 MΩ•cm
Risoluzione Resistività: 0.10 MΩ•cm
Accuratezza Resistività: ±2% F.S.
Calibrazione Resistività: factory calibrated
Resistivity Temperature Compensation: automatic and linear from 5 to 50°C (41 to 122°F)
β=2.4 ; 3.5 ; 4.5 %/°C selectable through jumper on the rear panel
Relè di Dosaggio Resistività: maximum 2A (fuse protected), 250 Vac, 30 Vdc contact closed when measure < setpoint Set Point Resistività: adjustable from 0 to 19.90 MΩ•cm Isteresi Resistività: 0.20 MΩ•cm Sovradosaggio: adjustable, typically from 5 to approximately 30 minutes Consumo di Energia: 10 VA Sonda Resistività: HI3314 resistivity probe with 2 m (6.6’) cable (included) Alimentatore: BL983314-0: 12 VDC adapter (included); BL983314-1: 115/230 VAC; 50/60Hz Dimensioni: 83 x 53 x 99 mm (3.3x2.1x3.9”) Peso: BL983314-0: 200 g (7.1 oz.); BL983314-1: 300 g (10.6 oz.) Informazioni Ordine: BL983314-0 (12 VDC) and BL983314-1 (115/230V) are supplied with HI3314 resistivity probe with 2 m (6.6’) cable, mounting brackets, transparent cover and instruction manual.
