€966,00 + 22% IVA
Scala pH: 0.00 to 14.00 pH
Risoluzione pH: 0.01 pH
Accuratezza pH: ±0.01 pH
Scala pH-mV: 0.00 to 14.00 pH
Risoluzione pH-mV: 0.01 pH
Calibrazione pH: manual 1 or 2 point
Compensazione della Temperatura pH: fixed by resistor; 2-wire pt100 optional
Impedenza Ingresso pH: 10¹² Ohm
Relè di Dosaggio pH: proportional, acid or base, user selectable
Set Point pH: manual adjustment through coarse/fine trimmers
Banda Proporzionale pH: fixed 1.5 pH unit band; adjustable by changing resistor
Relè Livello: dosing pump operated by consent feature through level input connection
Dosaggio: proportional, acid or base, user selectable
Terminali di Dosaggio: Isolated, 2A, Max. 240V, resistive load, 1,000,000 strokes
Set Point Relè Allarme: fixed; based on pH setpoint
Scala Relè Allarme: activated when pH is outside 2 pH units from setpoint
Segnale Uscita Analogica: 4-20 mA (isolated)
Fusibile di protezione : 250V fuse
Autoadescamento: maximum self-priming height is 1.5 m (5 ft.).
Uscita Analogica: 4 to 20 mA (isolated)
Display: segmented LCD
Alimentatore: 230V ±15%; 50/60Hz (40W)
Condizioni di Utilizzo: 0 to 50°C (32 to 122°F); RH max 95% non-condensing
Grado di Protezione IP: IP55
Dimensioni: 221 x 142 x 181 mm (8.7 x 5.6 x 7.1'')
Peso: Approximately 5 kg (11 lb.)

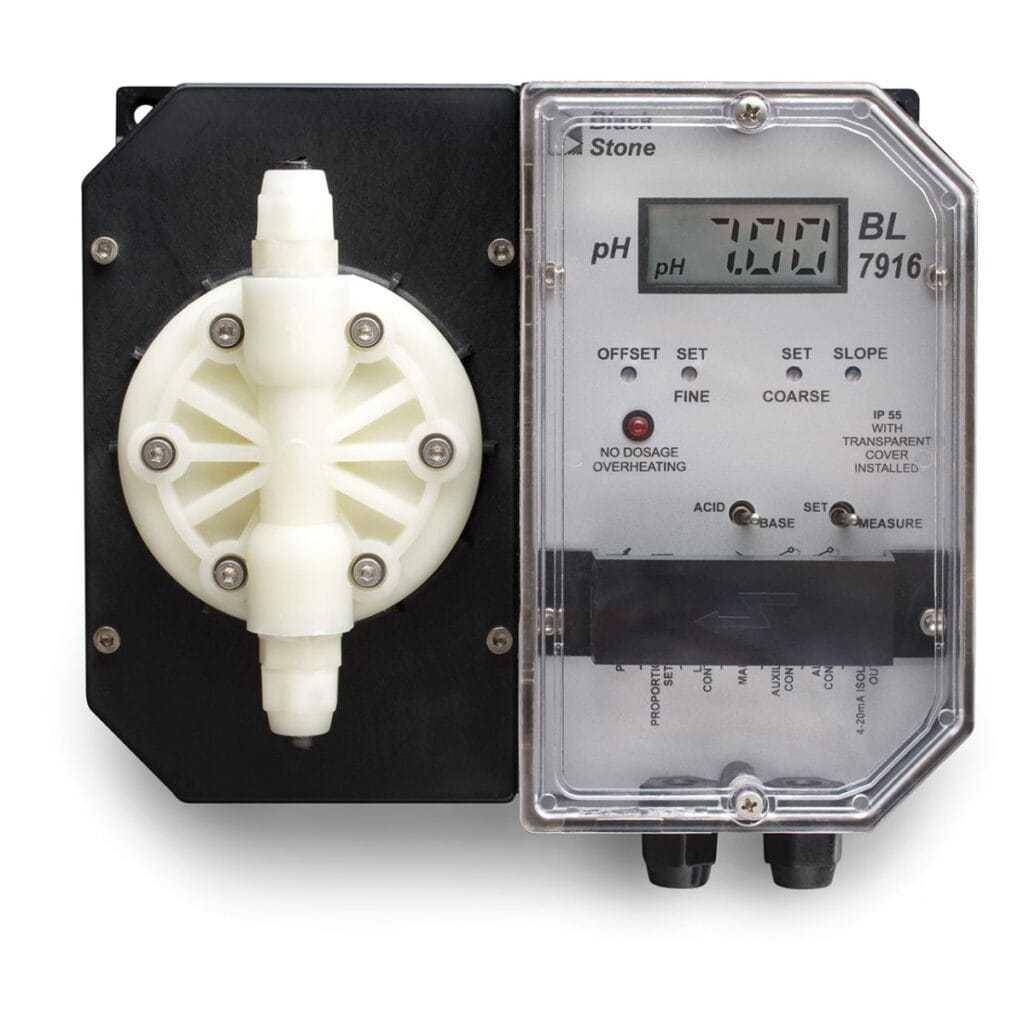

Informazioni Ordine: BL7916 is supplied with polyethylene tubing, foot valve, injection valve, power cable and instructions.
