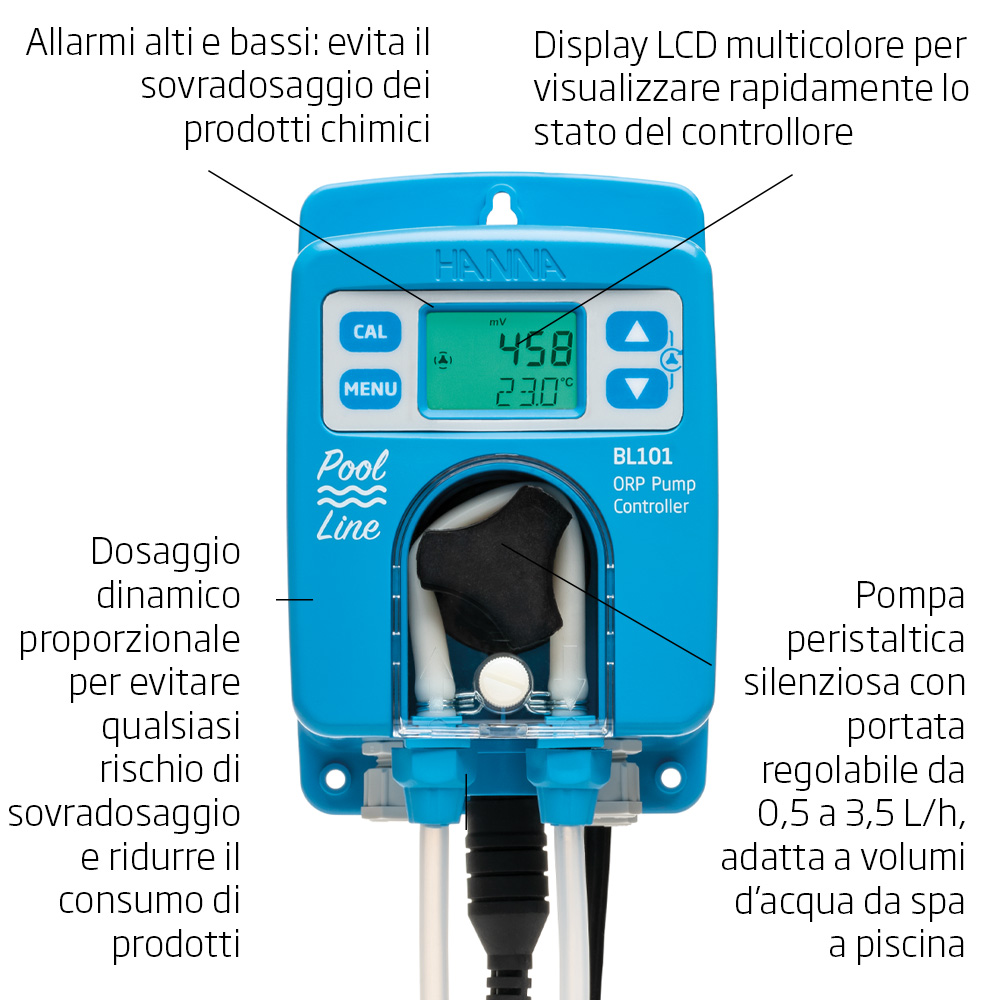

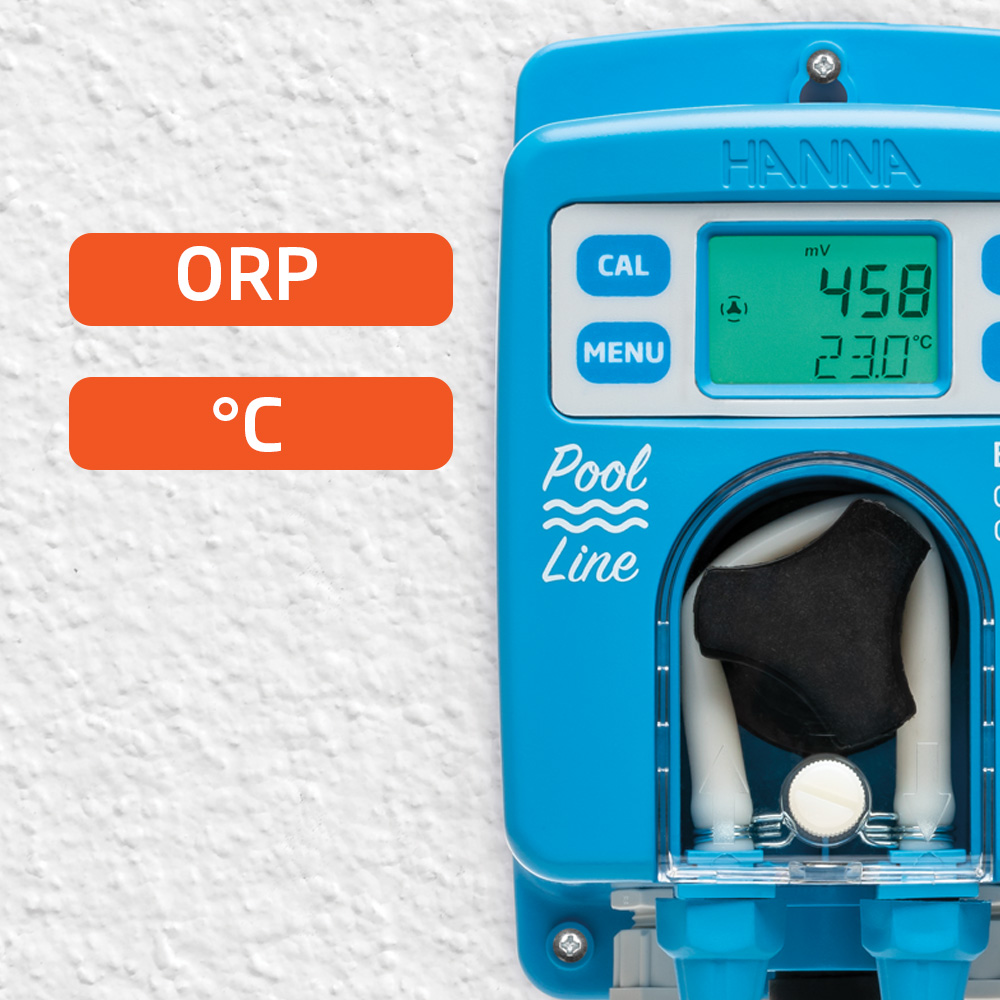

Regolatore Redox Pool line con pompa dosatrice incorporata - BL101

Scala mV: -2000 to 2000 mV
Risoluzione mV: 1 mV
Accuratezza mV: ±5 mV
Calibrazione mV (ORP): process calibration: single point, adjustable (± 50 mV around measured ORP value)
Relè di Dosaggio mV (ORP): High or Low Mode Operation
High set point dosing is activated when reading is higher than set point
Low set point dosing is activated when reading is lower than set point (dose oxidizer)
Set Point mV (ORP): On/Off control using adjustable set point (200 to 900 mV)
Banda Proporzionale mV (ORP): adjustable proportional band (10 to 200 mV)
Isteresi mV (ORP): adjustable hysteresis (10-100 mV)
Scala Temperatura: -5.0 to 105.0 °C (23.0 to 221.0 °F)
Risoluzione Temperatura: 0.1 °C (0.1 °F)
Accuratezza Temperatura: ±0.5 °C (±0.9 °F)
Dosaggio: proportional and on/off control
Set Point Relè Allarme: triggered after 5 sec. if the controller records a set of consecutive readings over or under threshold values
Sovradosaggio: overtime protection (1 to 180 min. or Off)
Segnale Ingresso Digitale: external switches can be connected to hold the control due to external events (low reagent level, recirculation pump doesn't work)
Consumo di Energia: 15 VA
Componenti Esterne Incluse: wall mounted with built-in pump
Portata Massima: selectable flow rate (0.5 to 3.5 L / hour; 0.13 to 0.96 g/hour)
manual control for pump priming

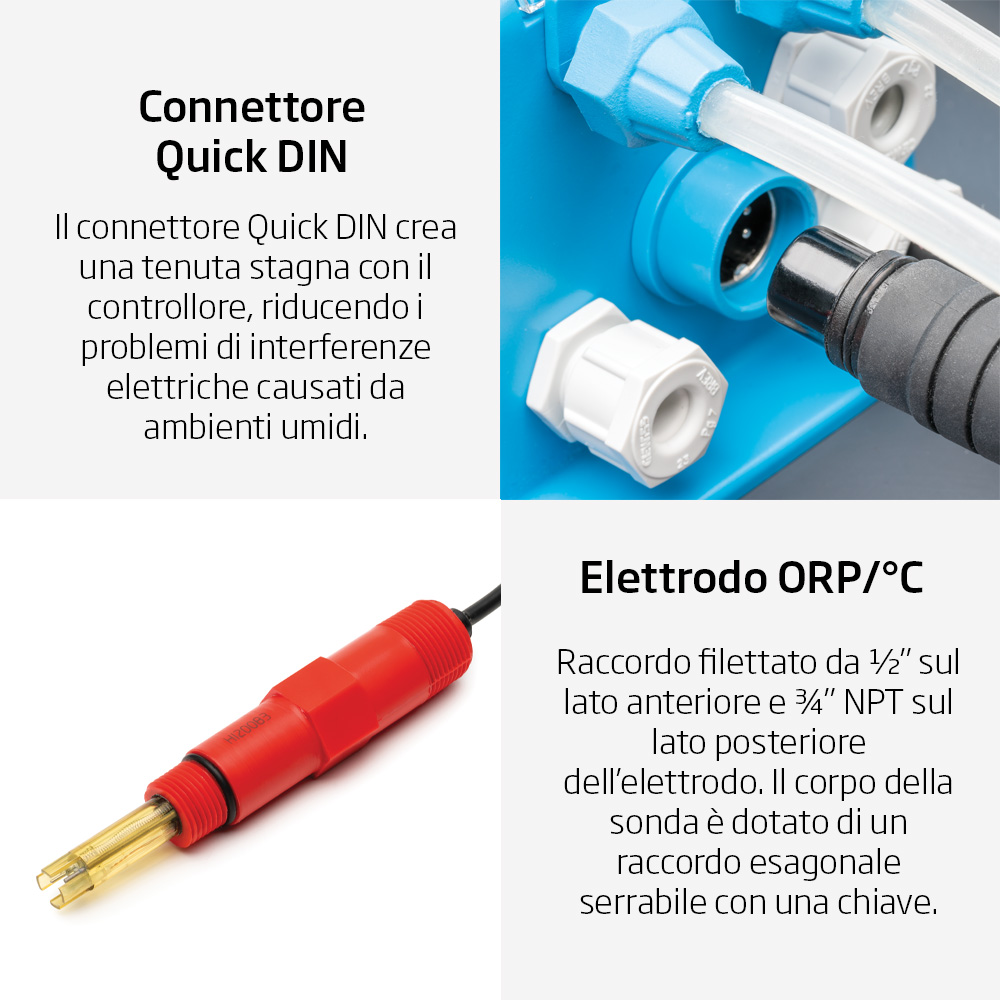

Electrodo ORP: HI20083 ORP/temperature probe with quick connect DIN connector (supplied)
Alimentatore: 100 - 240 Vac, 50/60 Hz
Condizioni di Utilizzo: 0 to 50 °C (32 to 122 °F), max. 95% RH non-condensing
Grado di Protezione IP: IP65
Dimensioni: 90 x 142 x 80 mm (3.5 x 5.6 x 1.8")
Peso: 910 g (32 oz)
Informazioni Ordine: BL101-00 is supplied with BL101 controller, HI20083 ORP/temperature probe, ORP test solution (3 pcs.), power connection cable, instruction manual and quality certificates for the instrument and electrode.
BL101-10 is supplied with BL101 controller, HI20083 ORP/temperature probe, 50 mm saddle for probe and chemical injector (2), aspiration filter (1), 1/2” threaded injection valve (1), flexible aspiration PVC tubing (5 m), rigid dispensing PE tubing (5), ORP test solution (3 pcs.), power connection cable, instruction manual and quality certificates for the instrument and electrode.
BL101-20 is supplied with BL101 controller, HI20083 ORP/temperature probe, panel mounted flow cell assembly, 50 mm saddle for probe and chemical injector (2), aspiration filter (1), 1/2” threaded injection valve (1), flexible aspiration PVC tubing (5 m), rigid dispensing PE tubing (15 m), tubing adapter 1/2” - 6 mm with racord (2), ORP test solution (3 pcs.), power connection cable, instruction manual and quality certificates for the instrument and electrode.
